Condair EL electrode boiler steam humidifier

The Condair EL electrode boiler steam humidifier provides reliable steam humidification  to an air handling unit or directly to a room. It is easy to install, use and service.

The steam cylinders of the Condair EL last up to three times longer than similar models due to advanced water quality management. The mineral content of the water is precisely monitored and managed. Water with high mineral content is drained and fresh water added only as required, thus minimising scale build-up and reducing the energy needed to heat fresh water.

When servicing is needed, the Condair EL's design makes it easy to drain, remove and replace the disposable steam cylinders, keeping downtime to a minimum. Cleanable cylinders are also available.

An advanced touch screen control panel makes operation simple while providing detailed diagnostic reporting. A USB connection allows performance data to be downloaded into Excel and the humidifier's software to be easily updated.

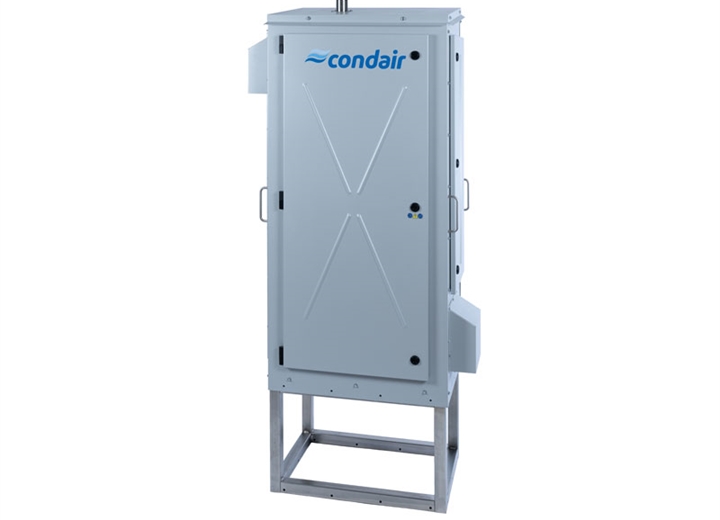

Condair Outdoor unit

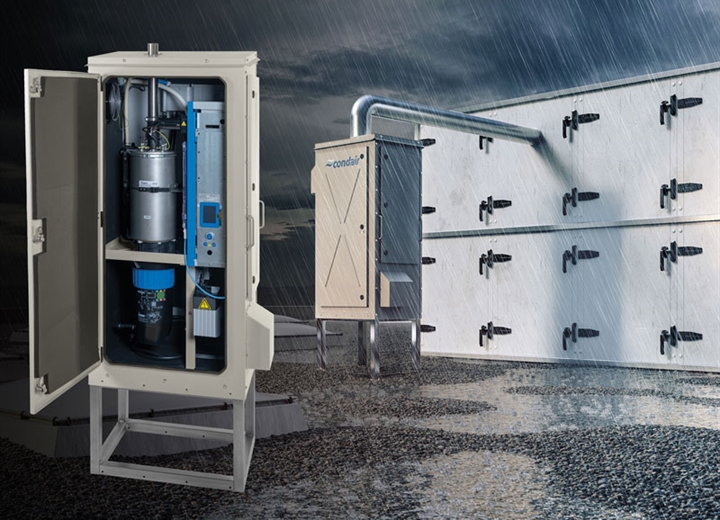

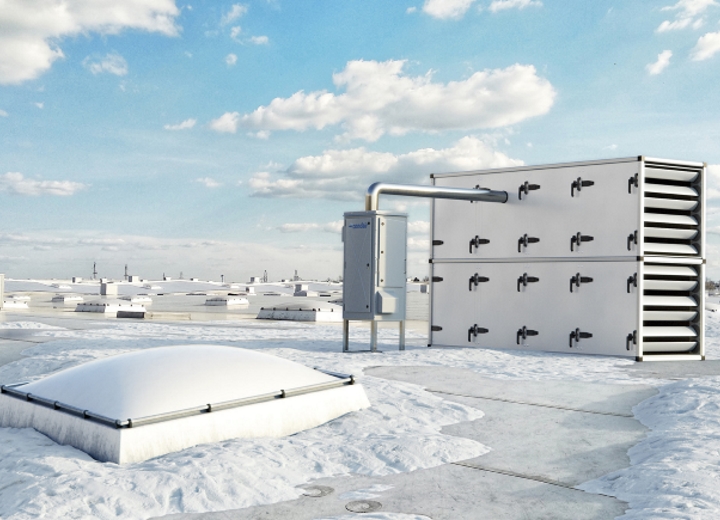

Condair has extended its range of electric steam humidifiers to include new IP55 rated models suitable for outdoor installation. The robust enclosures on the Condair RS resistive steam and Condair EL electrode boiler steam humidifiers enable the units to be located on rooftops and exposed to the elements.

Rather than simply installing the standard humidifiers inside a protective housing on a rooftop, the new outdoor humidifiers from Condair have purpose-built IP55-rated casings. This means they take up much less room on a rooftop and are easier to install. Condair’s new outdoor humidifiers are the most compact in the industry with the smallest footprint and incorporate lifting handles to make on-site transportation easier.

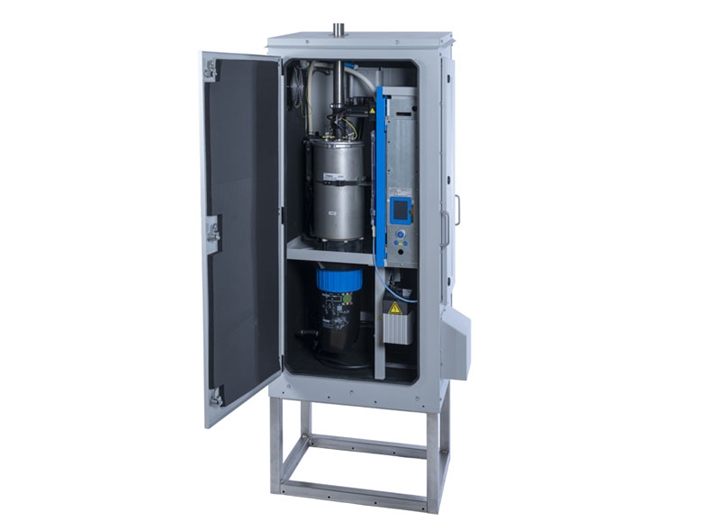

The enclosures incorporate a thermostat-controlled heater and fan unit to maintain the internal temperature at an optimum level with outside ambient conditions ranging from -20° to 40°C. An anti-freeze valve will ensure the humidifier completely drains should the unit experience temperatures of less than 6°C during periods of in-operation.

The new Condair outdoor humidifiers can be wall-mounted, allowing them to be attached to an AHU, or free-standing. Lockable doors are removable for easy access and optional internal lighting improves visibility for servicing and maintenance.

Features and benefits

  • Reliable steam humidifier that's easy to install, use and maintain
  • Long lasting steam cylinders due to innovative water mineral managment
  • Advanced touch screen control for easy operation and detailed reporting
  • Convenient and rapid servicing through cylinder replacement
  • BMS connectivity as standard
  • Operates on standard mains water
